Description

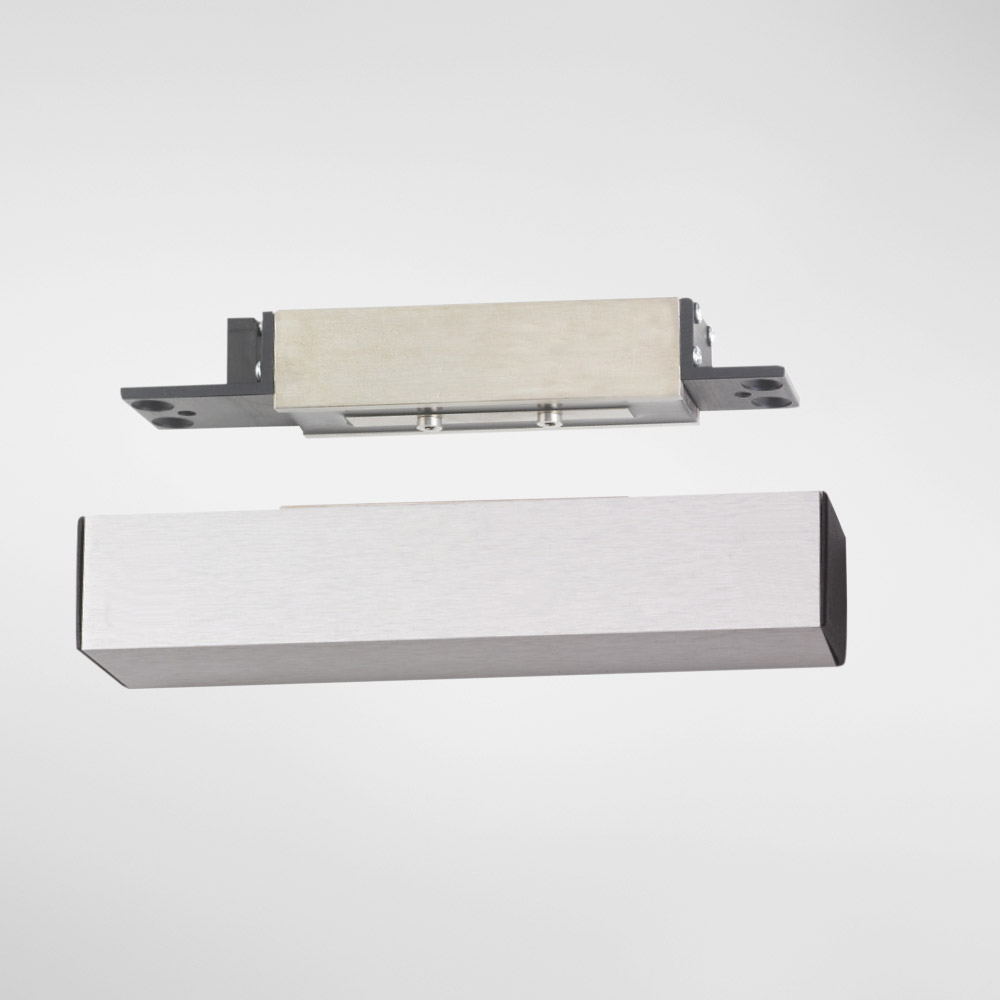

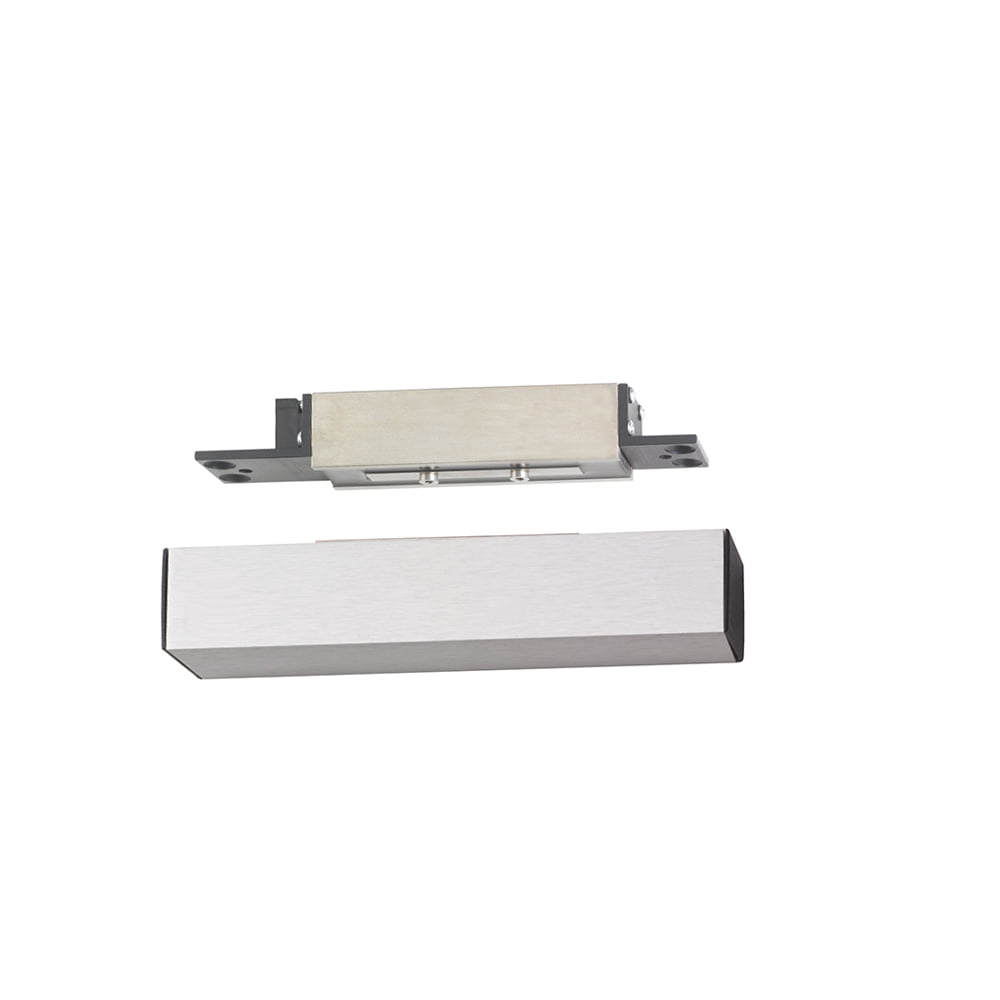

75583N Allgood Secure Semi-Concealed Mini Electromagnet Shearlock With Armature
- 1000kg holding force
- For use in single action door applications
- To achieve emergency breakout with side loading of up to 100kg
- Consists of morticed magnet and surface mount armature plate
- Suitable for timber door and frame, metal door and frame or glass door with top rail and frame
- Modified armature plate to release with up to 100kg of side loading
- Current draw @ 12/24v: current surge of 1.6 Amps reducing to 450mA at normal operation
- Dual monitoring (locking and door position)
- Dual 12/24v DC voltage
- 1.5 Amp pull in for 2 seconds
- 0.5 Amp continuous hold
- Supplied with separate control module (to be fitted local to shearlock)
