Description

75576RG Allgood Secure Double Electromagnetic Lock

• ML600-D-M Slimline Double Electromagnetic Lock & Armature

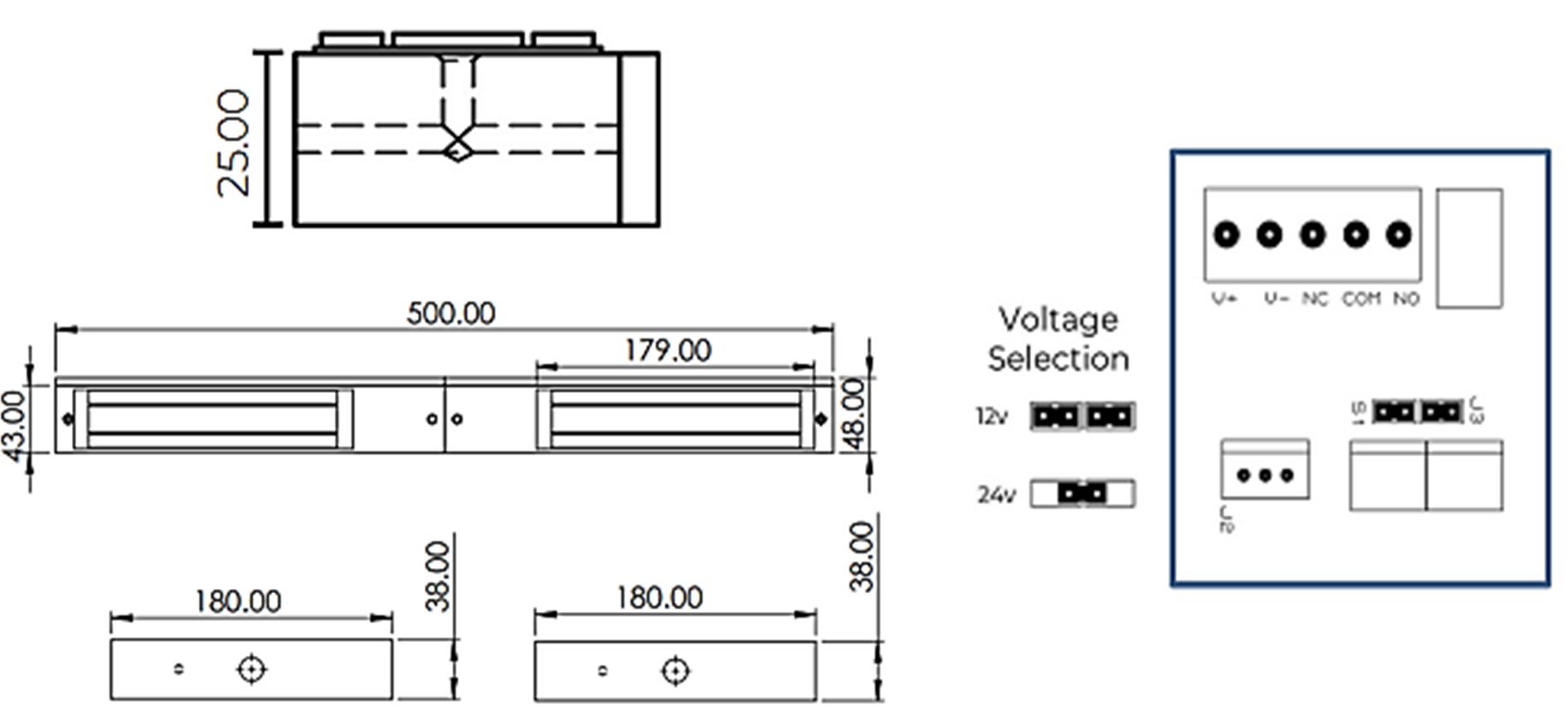

• Maglock 500mm Length x 43mm Width x 25mm Depth
• 2 x Armature 180mm Length x 38mm Width x 13mm Depth
• Aluminum housing.
• Dual Voltage 12/24 VDC @480/240mA x 2
• 280kgs (600lb) holding force x 2
• Built in surge protection.
• Surface Mount
• Fail safe operation (Power to lock)
• +/- 15% voltage tolerance
• -10° to +50° operating temperature
• Push off release pin on armature
• Monitored (Lock monitoring)
• Voltage free relay contacts
• Door status monitoring
• Fire Tested to BS 1634-1 & BS 476-22 (up to 120 minute timber doors)
• Slim line double magnet.
• Clean and compact design in aluminum.
• Status LED indication
• No residual magnetism
