Brivo Wall Mounted Door Controller

CODE: 73770

Brivo is the leading innovator of cloud-based physical security solutions for commercial buildings.

Clear
ADD TO MOOD BOARD

Add to Mood board

x

Create new Mood board

Select a Moodboard

Description

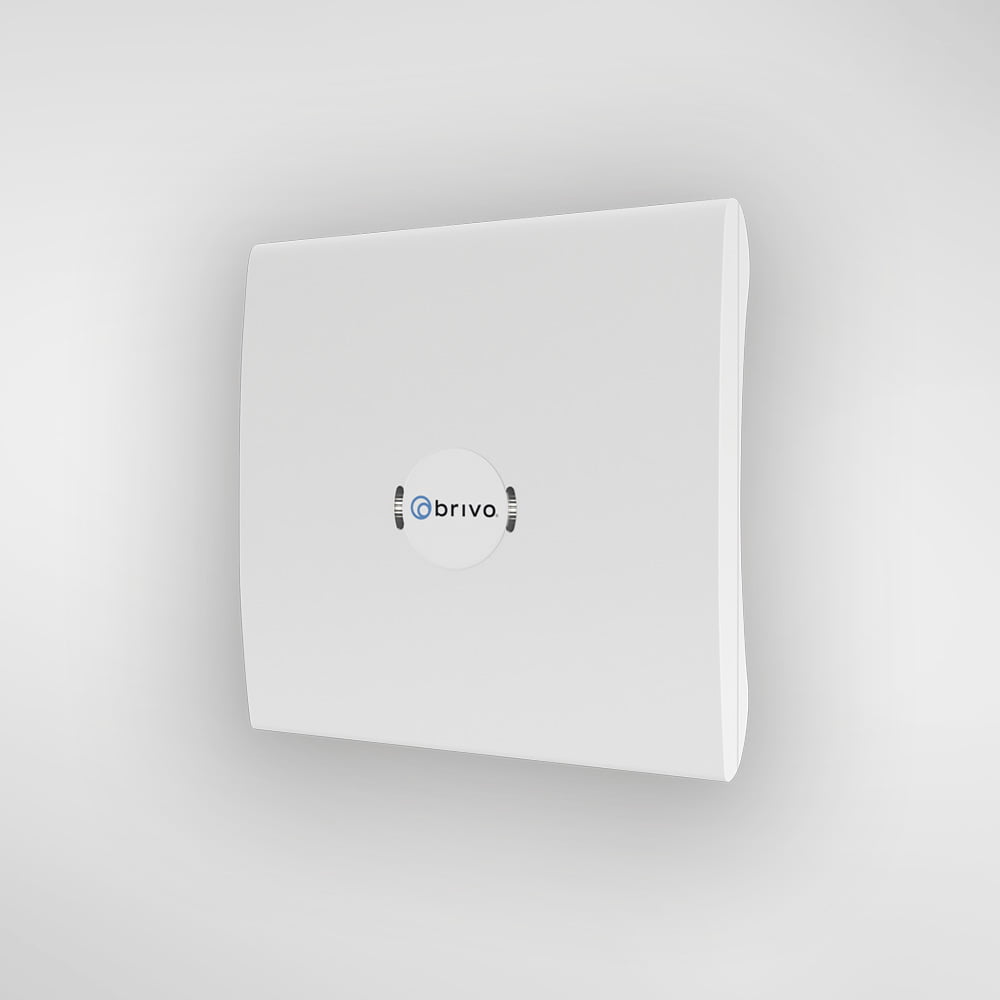

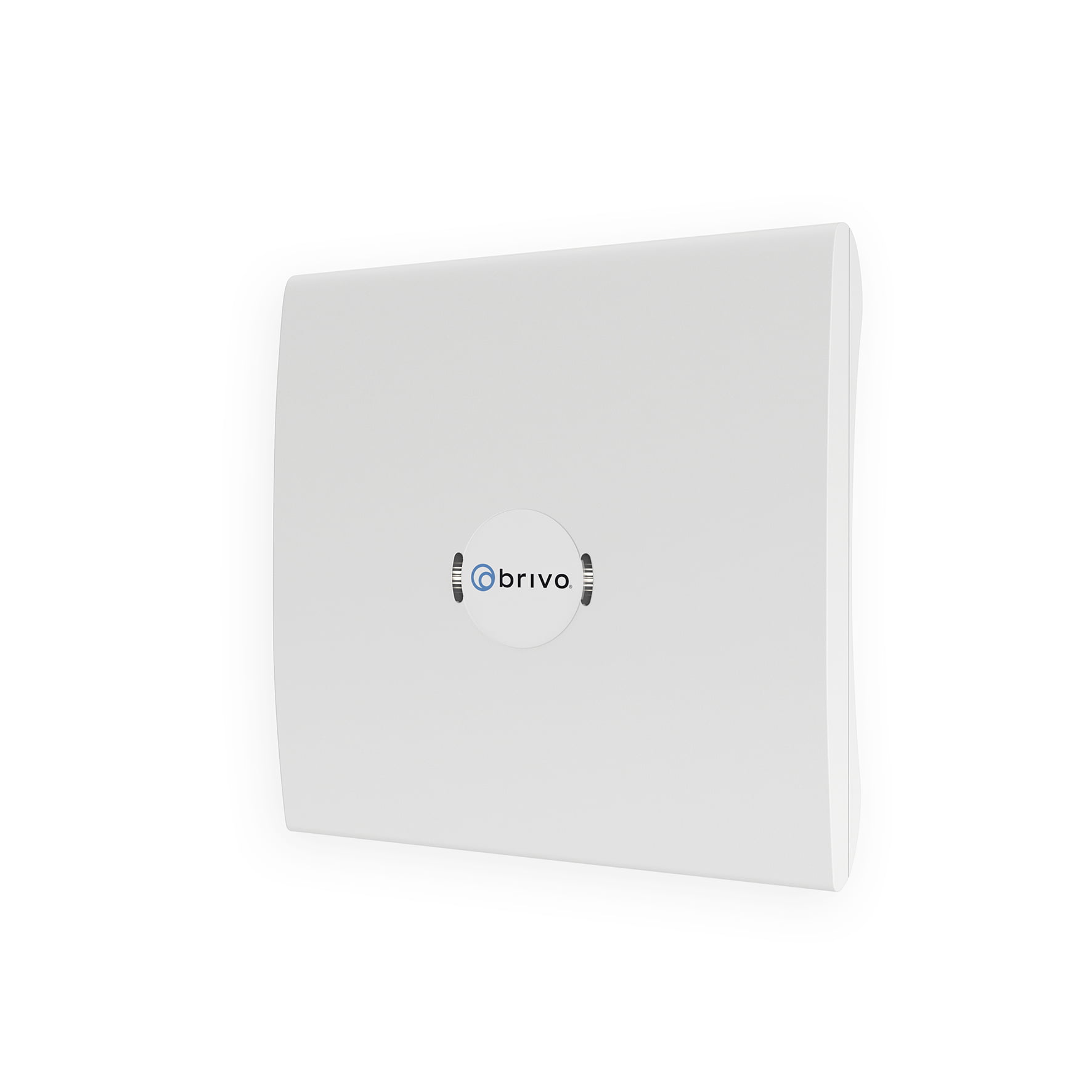

73770 Brivo Wall Mounted Door Controller

• Host communication Ethernet 10/100 Mbps or Wi-Fi IEEE 802.11 b/g/n
• For use with Brivo Bluetooth wall readers and cloud-based management software
• Supports up to 2 card readers per controller
• 2 Wiegand Ports or 1 RS-485 Port for 2 OSDP Readers
• Supports Brivo Mobile Pass credentials (mobile phone card access)
• Event history 60,000 events (FIFO) offline from host
• 8 inputs per controller On-board; (2) door position inputs; (2) Request to exit inputs; (4) Auxiliary inputs
• 6 outputs per controller (2) non-latching wet (12V, 350mA) or dry (6A @ 28VDC) selectable door lock relays, plus (4) general purpose dry relays (6A @ 28VDC)
• Power input, Power over Ethernet (PoE+) from network switch or PoE+ injector or 12VDC, 2.5A – power supply (not included)
