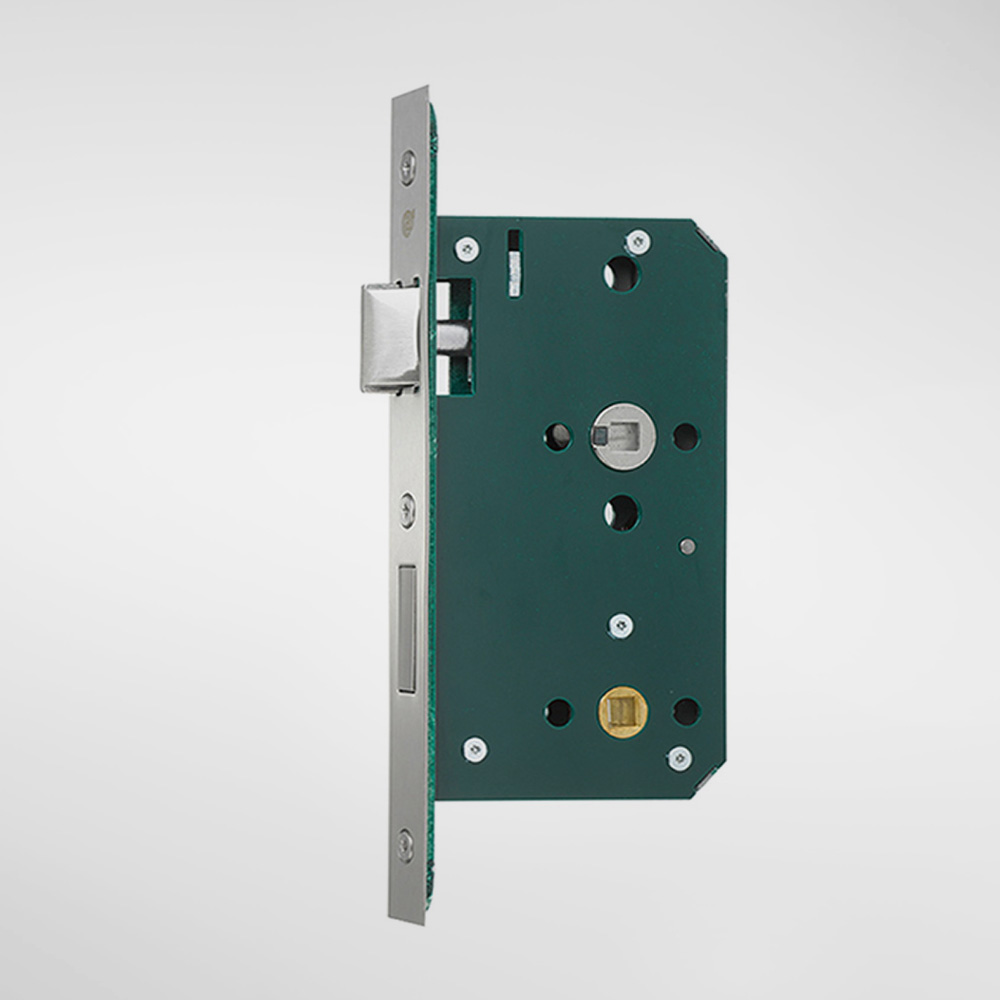

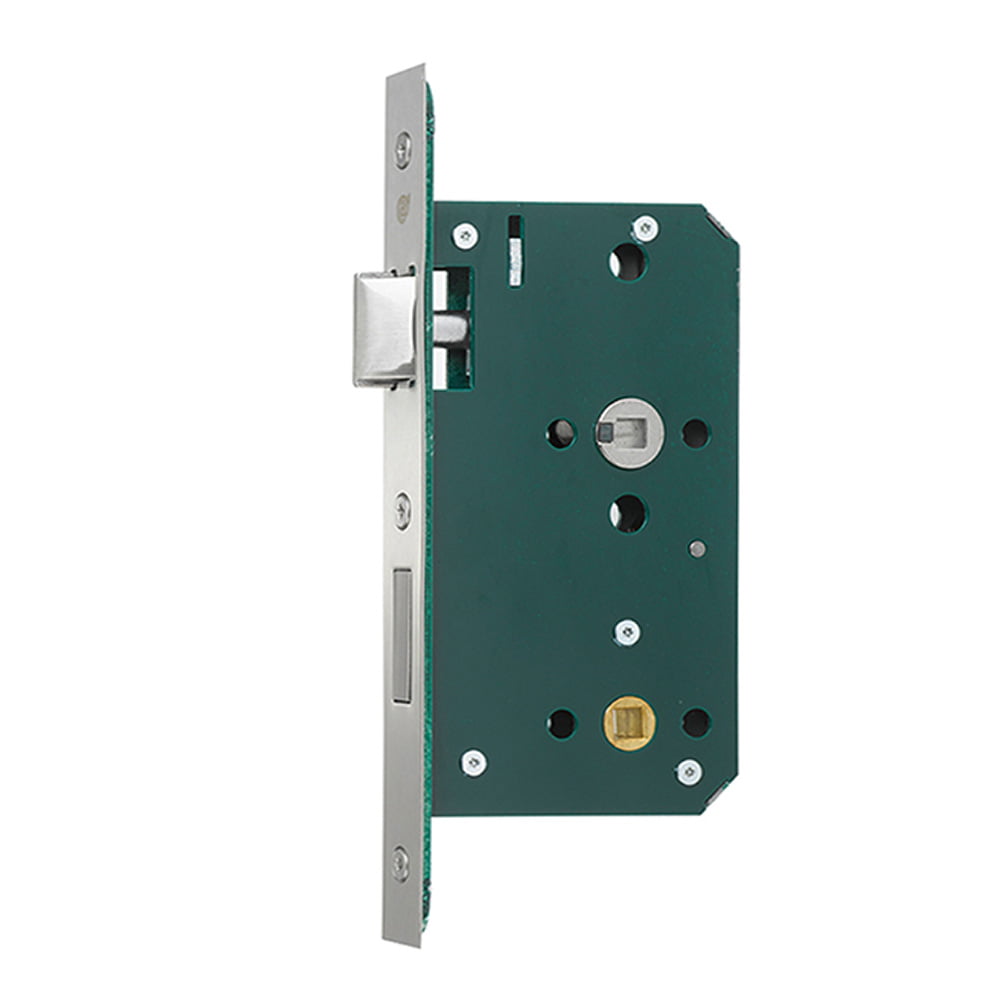

Allgood Hardware 72 Series Mortice Bathroom Lock

CODE: 7208

Modular case vertical bathroom lock.

Clear
ADD TO MOOD BOARD

Add to Mood board

x

Create new Mood board

Select a Moodboard

Description

7208 Allgood Hardware 72 Series Mortice Bathroom Lock

• Independently tested to BS EN 12209
• Incorporated in a successful fire test and assessed to BS EN 1634-1 & BS 476 Pt 22
• Certifire approved
• CE marked
• Declaration of Performance DOP-AGD-302
• Heavily sprung for lever handles or lightly sprung for knob handles
• Latchbolt is reversible without opening the case
• Case holed to suit through fixing furniture
• Supplied with reversible strike plate and mortar box
• 8mm deadbolt/privacy follower
• 10 year warranty

Variations

Product Code Handle Forend A (mm) B (mm)
7208.60 Lever Square 92 60
7208.80 Lever Square 112 80
7208K10 Knob Square 132 100
7208F60 Lever Radius 92 60
7208F80 Lever Radius 112 80
7208KF10 Knob Radius 132 100


Dimensions: A = Case depth,
B = Backset
